Build Your Own:

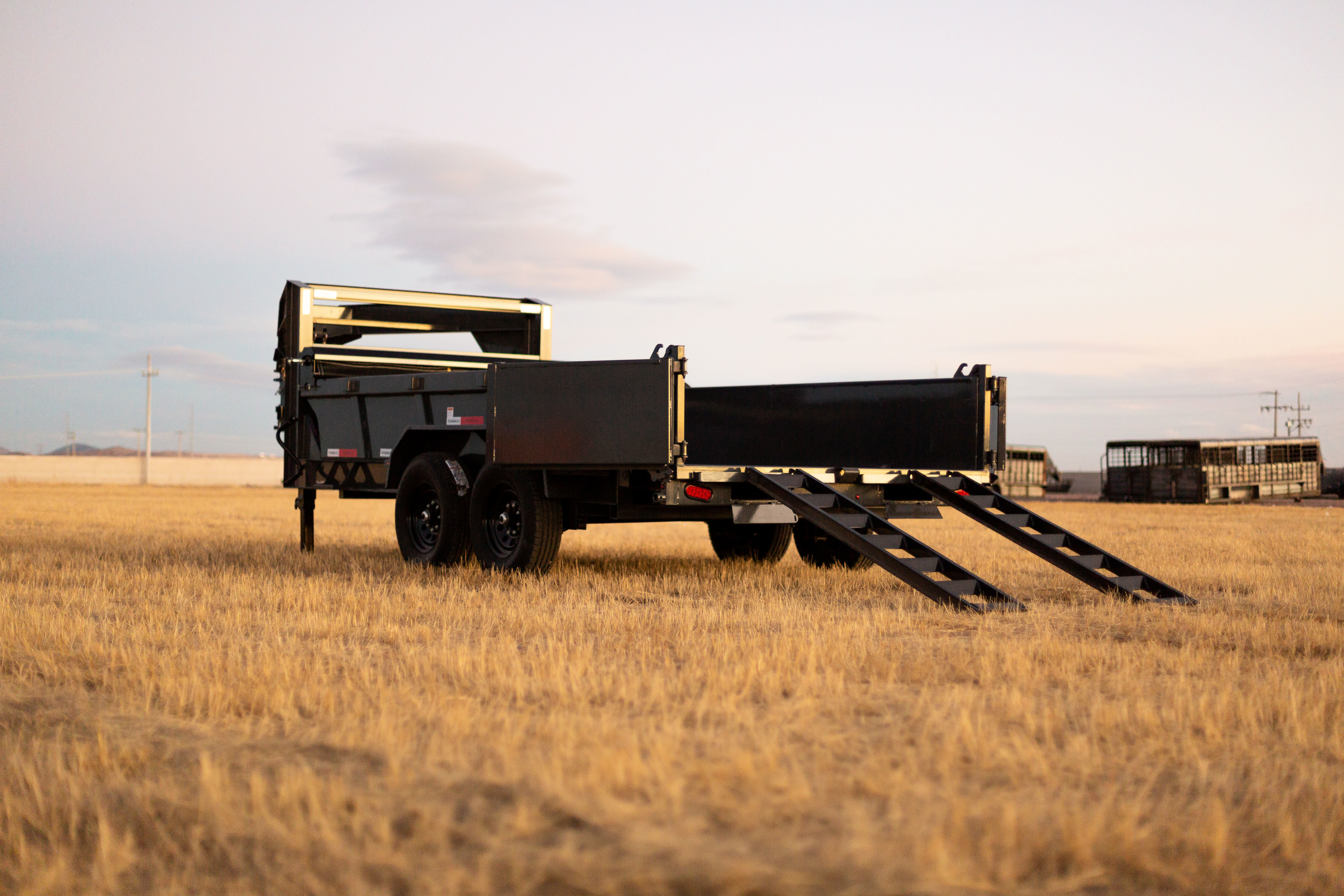

LPX Tandem Axle Steel Gooseneck Dump Trailer 14,000 Lb

From $21,470.00
Apply here!

Gooseneck Dump Trailers

Heavy Duty Trailers

Loading


The LPX dump trailer, a reliable and sturdy option for hauling heavy loads. With its 5' x 5'' x 3/8'' angle type tilt frame and 3'' channel cross-members with 16'' spacings, this trailer can handle even the toughest jobs.


Available Inventory!

Features

7,000 Lb (each axle)
2-5/16" Adjustable Coupler
3/8" G70 Safety Chains
Dropleg 10,000 Lb Jack
2 - 7,000 lb. Electric Brake Spring Axles
235/80R16 10 Ply. Tires
16" 8 on 6.5" Black Mod Rims
8" x 13lb. I-Beam Tongue
96" Long Tongue
8" x 13lb. I-Beam Frame
4"x6"x3/16" Tubing Main Frame Crossmembers
3" Channel 16" O.C Bed Crossmembers
10 Ga. Formed 22" High Sides
7 Ga. Steel Floor
(2) Side Steps
Front Toolbox Between Risers
Diamond Plate Steel Fenders
3-7/8" x 1-13/16" Stake Pockets
(4) D-Rings
Rear Barn Doors with Integrated Spreader Doors w/ EZ Slam Door Latches
6' Slide-In Channel Ramps
Manual Tarp Kit
Scissor Lift (Power Up/Down)
KTI 12V Hydraulic Pump w/ 14' Cable
5" x 16" Cylinder
48 Degree Tilt Angle
27M Deep Cycle Marine Battery
110V Integrated Trickle Charger
Electric Breakaway Kit
DOT Reflective Tape
Spare Tire Mount w/Spare Tire
7-Way Plug
All Weather Wiring Harness
LED Lighting
Prep: Grit Blast
Powder Coat Finish
5 Year Axle Warranty - 3 Year Structural Warranty - 1 Year Paint Warranty

Selecting options may change these features!

Select a Model

Name: LPX12GN14K
Width: 83"
Length: 12'
Axles: TANDEM
Gvwr: 14000#
Price: $ 21470.00
Specs
Name: LPX14GN14K
Width: 83"
Length: 14'
Axles: TANDEM
Gvwr: 14000#
Price: $ 21965.00
Specs
Name: LPX16GN14K
Width: 83"
Length: 16'
Axles: TANDEM
Gvwr: 14000#
Price: $ 22740.00
Specs

Choose your Options

Axles

2 - 7,000 lb. Electric Brake Spring Axles
Standard
2 - 8,000lb. Electric Brake Spring Axles
$2779.81
X1004 - 3 - 7,000 lb. Electric Brake Spring Axles
$2223.85

Battery Charger

110V Integrated Trickle Charger
Standard

Colors

Jet Black
Jet Black
$0.00
Shadow Gray
Shadow Gray
$0.00
Lava Gray
Lava Gray
$0.00
Chalk White
Chalk White
$0.00
Ghost White
Ghost White
$0.00
Sunny Beige
Sunny Beige
$0.00
Desert Tan
Desert Tan
$0.00
Army Green
Army Green
$0.00
Limon Green
Limon Green
$0.00
Classic Orange
Classic Orange
$0.00
Cobalt Blue
Cobalt Blue
$0.00
Ruby Red
Ruby Red
$0.00

Couplers

2-5/16" Adjustable Coupler
Standard

Crossmembers

16" O.C. Crossmembers
Standard

D-Rings

(4) D-Rings Weld On
Standard

Dump Sides

10 Ga. Formed 22" High Sides
Standard
X1032 - 36" High Sides (Per/ft)
$64.86 per ft
X1033 - 44" High Sides (Per/ft)
$120.46 per ft

Extensions

X1034 - 12" High Remoavable Extensions (Per/ft)
$64.86 per ft
X1035 - 24" High Removable Extensions (Per/ft)
$120.46 per ft
X1036 - Extension Brackets For Wood (set)
$250.19

Fenders

Diamond Plate Steel Fenders
Standard

Flooring

7 Ga. Steel Floor
Standard

Jacks

Dropleg 10,000 Lb Jack
Standard
X1044 - 1 - 12,000 Lb. Hydraulic Jack
$1575.23
X1045 - 2 - 12,000 Lb. Hydraulic Jack
$2779.81

Lights

7-Way All Weather LED Lighting
Standard

Ramps

6' Slide-In Channel Ramps
Standard

Rear Support Jacks

X1074 - 2 - 7,000 Lb. Rear Stabilizer Jacks (Pair)
$315.05

Scissors

Scissor Lift (Power Up/Down) w/ 5" x 16" Cylinder
Standard

Spare Tire Mount

Spare Tire Mount
Standard

Spare Tires

T1008 - Spare Tire ST235/80R16 10 Ply. On Black Mod Rims
Standard
T1009 - Spare Tire ST235/80R16 14 Ply. On Black Mod Rims
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
 $370.64

Stake Pockets

3-7/8" x 1-13/16" Stake Pockets
Standard

Tire Upgrades

T1001 - ST235/80R16 14 Ply. On Black Mod Rims
$74.12 per wheel

Tires and Wheels

ST235/80R16 10 Ply. On Black Mod Rims
Standard

Toolbox

Front Toolbox Between Risers
Standard

Wireless Remote

X1031 - Wireless Remote on KTI Pump
$833.95

Custom Options
