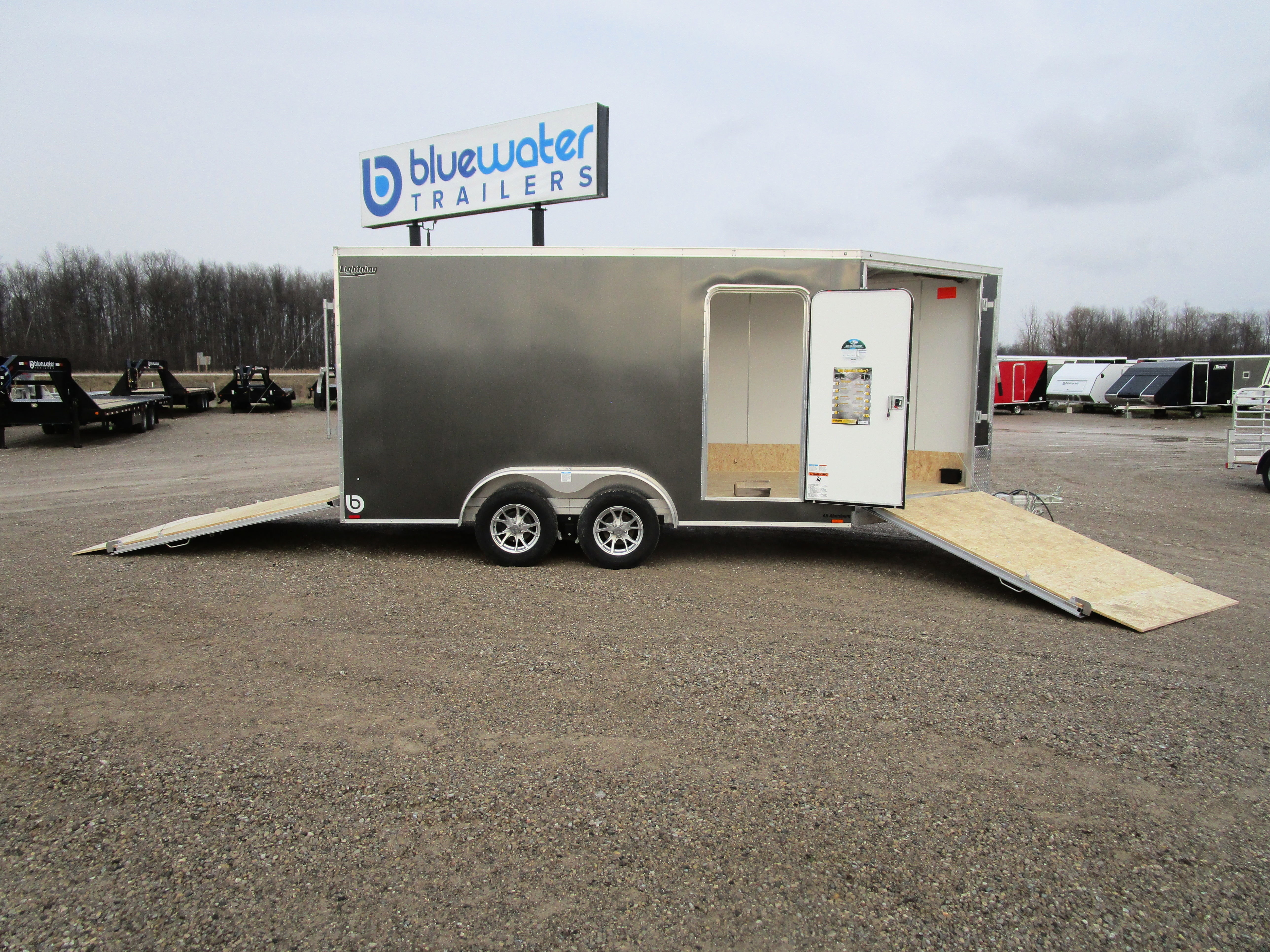

Charcoal, Ramp Door,6EH
View as Catalogue
Lightning Enclosed Snowmobile Trailers are available in various sizes to accommodate between 2 and 4 snowmobiles at a time. They are available in both a 7' wide "in-line" and the 8.5' wide "deck-over" models. All models feature front and rear ramp doors for true "drive in-drive out" use. Our available Radar package includes many of our most popular options. Aluminum rims, white vinyl interior walls and fuel doors are just some of the features of the Radar Package.
All Aluminum Frame
2" x 4" Aluminum Tube Frame on (12ft - 14ft)
2" x 5" Aluminum Tube Frame on (18ft - 24ft)
16" On Centre Wall Construction
3500lb Spring Axle(s) w/EZ Lube Hubs
(1) 12V Dome Light w/Switch
Spring Assist On Rear and Front Ramp Door
5000# D-Rings (4) on (12ft - 14ft), (5) on 18ft, (6) on 22ft - 24ft
Screwless .030 Aluminum Exterior
2" Coupler
LED Lights
5' V-Nose (No Slope)
15" Radial Tires w/Gray Rim
3/4" Engineered Flooring
Tongue Jack
32" Pre-Hung Frame Side Access Door w/Flushlock
All Powder Coated Door Hardware
12" Interior Kickplate
.024 Seamless Aluminum Roof
Aluminum Stoneguard
16" Aluminum Stoneguard
Roof Vent
1 Year Warranty
Front Ramp w/Spring Assist
Rear Ramp w/Spring Assist
15" Radial Tires w/Gray Rim
Roof Vent
Model #: LTFES714TA2
Dimensions: 7.5' x 19'
GVWR: 7000lb lbs
Axles: TANDEM
Brakes: ELECTRIC
Frdo Height: 5' 6"
Frdo Width: 5' 1"
Full Measured Length: 19'
Hitch Weight: 170lb
Interior Height: 6' 7"
Interior Length: 18' 6"
Interior Width: 7'
Oa Height: 8' 8"
Oa Length: 21' 8"
Oa Width: 8' 6"
Payload: 5310lb
Rrdo Height: 6' 4"
Rrdo Width: 6' 7"
Weight: 1690lb
Wheels: 4
Overall Width: 5"
Axles
- 3500lb Spring Axle(s)
Colors
- Charcoal
Frame
- Upgrade Body to 7.5' Wide
Interior Height
- 6" Additional Height
Trailer Packages
- Lightning Radar Package (White Vinyl Walls, Aluminum Rim Upgrade, 24" Stoneguard Upgrade, Fuel Door (Total of (2) on Models over 19ft), Front & Rear Ramp Door Flaps, 16" O.C. Floor , 16" O.C. Ceiling)
