Black, Ramp Door, Alum Rims,6EH
View as Catalogue

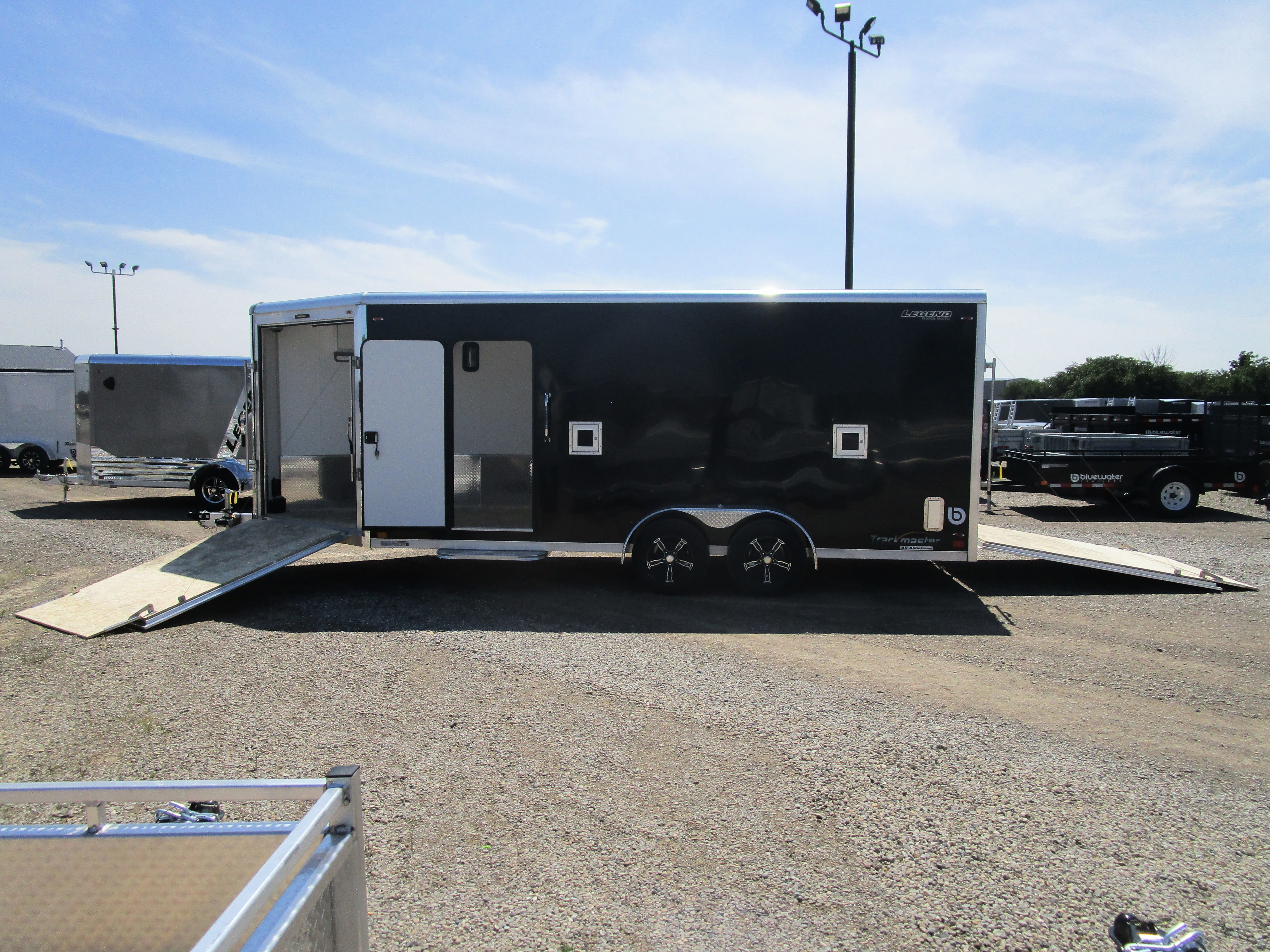

The Legend Trackmaster is the premier all aluminum trailer on the market. It's easy on the eyes with lots of bling, but this drive on, drive off trailer really shines with the structure you can't see. Take our Trailmaster, add a heavy duty extruded radius top rail, feed it some steroids, and you've got an all aluminum tank on your hands that will last a lifetime.
Aluminum 2" X 6" Tube Perimeter Frame
1.5" X 1.5" Aluminum Radius Tube Roof Bows 16" On Centre
2" X 3" Aluminum Tube Floor Cross Members 16" On Centre
1.5" X 1.5" Aluminum Tube Wall Post 16" On Centre
3" X 6" Extruded Aluminum Triple Tube Tongue (32")
3500Lb Dexter Torsion Axle W/ E-Z Lube System
0.030 Screwless Aluminum Exterior Skin
Seamless One Piece Aluminum Roof
ST205/75R15 Tires On Aluminum Rims
Side Access Doors: (1) On 17' & 19', (2) On 23' And Larger
Stainless Steel Door Hardware W/ Key Lockable Hasp (Lockable Hasps Not Available On Barn Doors)
30" X 68" RV Roadside Door W/ Flush Lock & Aluminum Holdback With Black Frame
Lighted Side Entry Door Grab Handle
24" Tall Kickplate W/ ATP Covering
3/8" Engineered Wood W/ White Vinyl Walls
3/8" Engineered Wood W/ White Vinyl Ceiling
Heavy Duty Extruded Upper Radius
ATP Fenders
Bright Polished Aluminum Nose
24" ATP Stone Guard
Led Exterior Lighting
(4) 12V Rectangle Led Interior Dome Lights W/ Wall Switch
Front Ramp Loading Light
3/4" Engineered Wood Flooring
(2) Side Wall Salem Vents
2 5/16" Coupler
Legend Built Side Entry Door Step
Self-Mating Rear & Front (Roadside) Ramp Doors W/ Spring Assist
44" Deluxe Overhead Cabinet W/ Clothes Bar In V-Nose
(6) 1000LB D-Rings Installed
7 Way Junction Box Mounted On Interior Wall
Heat Shrink Tube Connected 12V Wiring
Heavy Duty Aluminum Skid Pads
2000LB Top-Wind Set-Back Jack W/Foot
Limited 10 Year Axle-Limited Lifetime Structural-Limited 1 Year Floor-Limited 25 Year Roof Warranty
3/4" Engineered Wood Flooring
Legend Built Side Door Step
Model #: LS7X23TA35
Dimensions: 7' x 23'
GVWR: 7000LB lbs
Axles: TANDEM
Box Length: 18'
Brakes: ELECTRIC
Interior Height: 7'
Interior Length: 22' 9"
Interior Width: 6' 6"
Oa Height: 8' 7"
Oa Length: 26'
Oa Width: 102"
Payload: 4310LB
Rrdo Height: 6' 8"
Rrdo Width: 72"
V-Nose Length: 5'
Weight: 2690LB
Wheels: 4
12v Lighting
- (2) 12V Rectangle Led Interior Dome Lights W/ Wall Switch
Color
- Matte Black
Door Hardware & Accessories
- Ramp Door Flap Extension (Sport) (Rear Ramp)
- Ramp Door Flap Extension (Sport) (Front Ramp)
Interior Height
- 6" Additional Height(Per Foot of Floor)
Tires and Wheels
- ST205/75R15 LRC Radial Tires On Black Aluminum Rim ILO Gunmetal Aluminum Rim (5 Hole)
