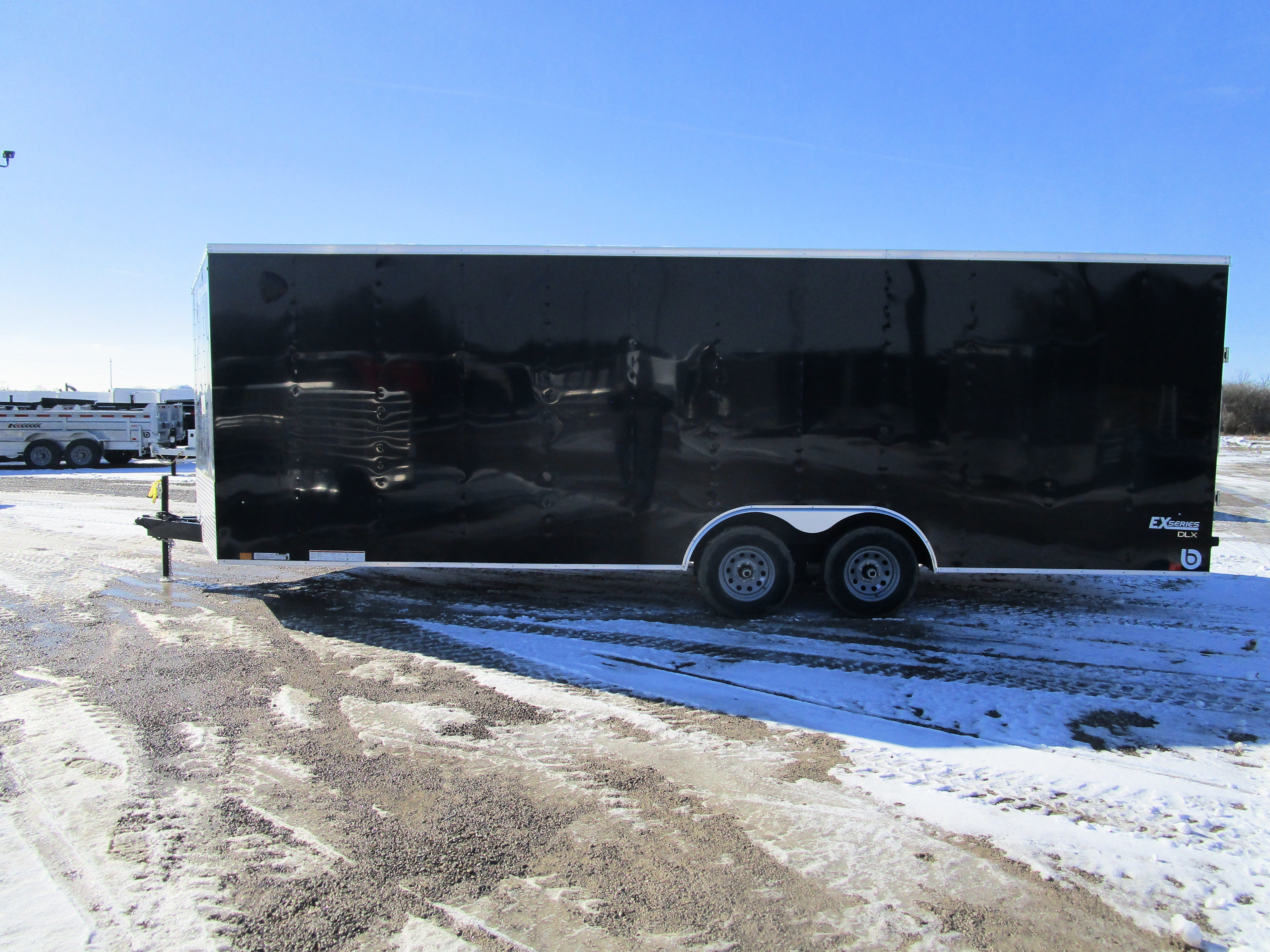

The EX DLX offers such a smooth ride, you won't even notice it's there.
The 15" tires, 4-wheel electric brakes and spring axles ensure a smooth
ride for this pull-behind enclosed trailer. All you'll need to do is
decide which premium options to include in your new hauler.

Tube Main Frame Construction
24" O.C. Frame
24" O.C. Sidewalls
16" O.C. Roof Bows
Spring Axles
EZ-Lube Hubs
4-Wheel Electric Brakes
15" ST205/75R15 Tires
2-5/16" Coupler
Safety Chains
2000# Tongue Jack
Sand Pad
3/4" Floor
Interior Wall Liner
Aluminum Exterior
Painted Exterior Screws - White or Black
30" V-Front Slope Nose (Flat Top)
Radius Front (Round Top)*
TPO Cap (Round Top)*
(4) 5000# D-Rings
.030 Top Wrap (Round Top)*
1 Piece Aluminum Roof
ATP Fender Flares
Double Rear Aluminum Framed Doors or Rear Ramp Door w/ 4' Beavertail & 16" Ramp Extension
24" Stoneguard
36" Entry Door w/Flush Lock and Recessed Step
(2) Sidewall Vents
7-Way Plug
LED Tail Lights & Clearance Lights
(2) LED Dome Lights & Switch
Moisture Barrier
Automotive Undercoating
Limited 3 Year Warranty

Model #: CSAAB8.5X24TE2FF
Dimensions: 8.5' x 24'
GVWR: 9990# lbs
Axles: TANDEM
Brakes: ELECTRIC
Full Measured Length: 27'
Interior Height: 7'
Interior Length: 26'
Interior Width: 96"
Oa Height: 8' 11"
Oa Length: 28' 3"
Oa Width: 102"
Payload: 6250#
Rrdo Height: 6' 6"
Rrdo Width: 93.5"
Weight: 3740#
Wheels: 4

Axles
- Upgrade from Tandem 3500 (TE2) to Tandem 5200 (TE3) **Must Upgrade Floor Crossmembers to 16" OC)

Hitch and Frame
- 6" Additional Height (8.5x24)
