Black, Ramps, Spoiler, 6EH, D-Rings, Flaps
View as Catalogue

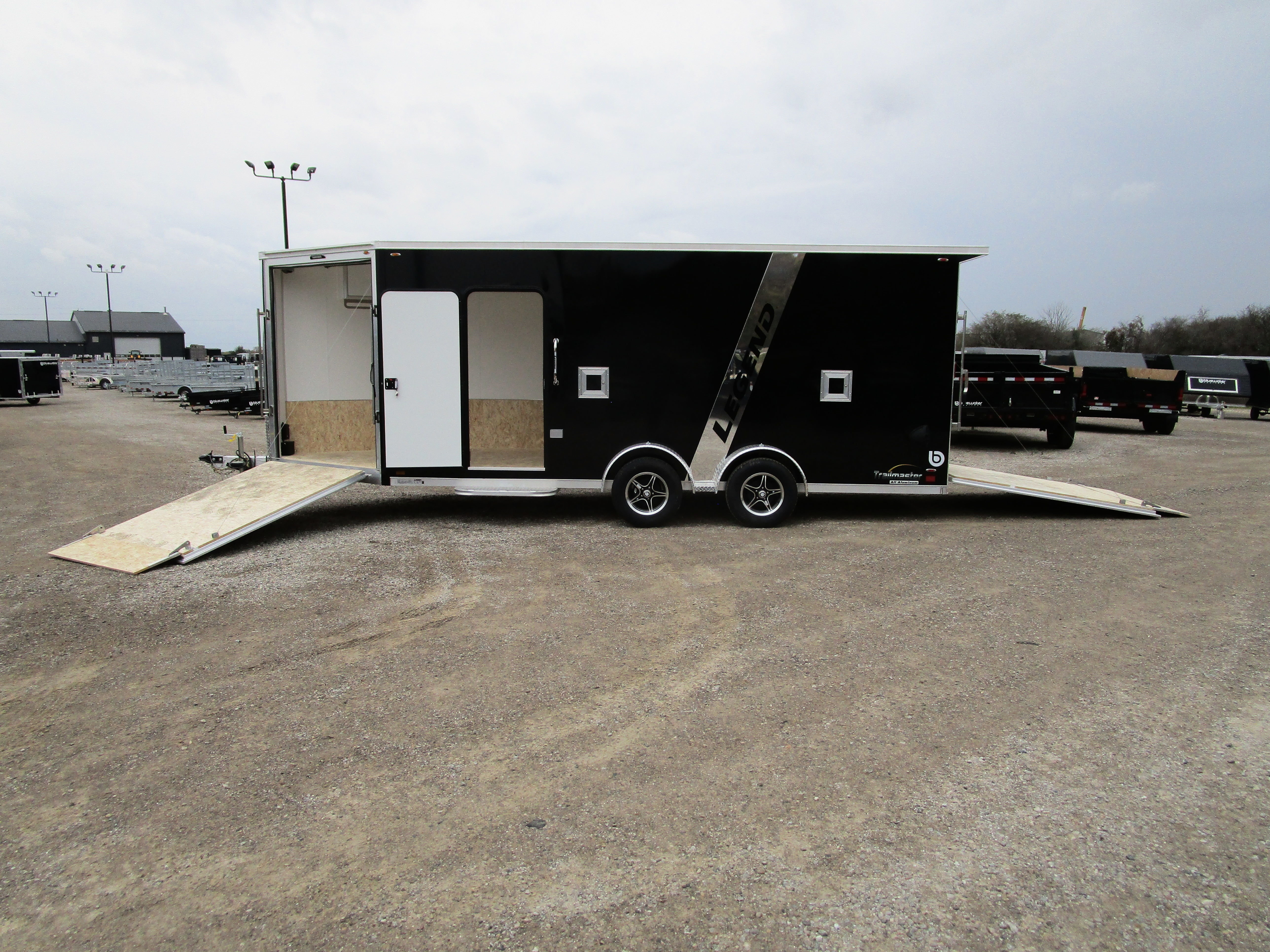

Looking for an enclosed trailer that you can use for just about anything?
While similar in many regards to our top selling Explorer Snow, the Trailmaster dresses things up a bit further with standard features like Legend exclusive self-mating doors, a deluxe fixed step at the side entry door, black locking hasps on the rear door, and a bright polished radius V-Nose. This premium model also comes backed by a limited lifetime structural warranty.
Aluminum 2" X 6" Tube Perimeter Frame
1" X 1.5" Aluminum Radius Tube Roof Bows 16" On Centre
2" X 3" Aluminum Tube Floor Cross Members 16" On Centre
1" X 1.5" Aluminum Tube Wall Post 16" On Centre
3" X 6" Extruded Aluminum Triple Tube Tongue (32")
3500LB Dexter Torsion Axle W/ E-Z Lube System
0.030 Screwless Aluminum Exterior Skin
Seamless One Piece Aluminum Roof
ST205/75R15 /nitrogen Filled Tires On Aluminum Rims
Side Access Doors: (1) On 17' & 19', (2) On 23' And Larger
30" X 68" RV Roadside Door W/ Flush Lock & Aluminum Holdback With Black Frame
Legend Fixed Side Door Step
Lighted Side Entry Door Grab Handle
White Vinyl Walls
24" Tall 3/4" Engineered Wood Kick Plate
White Vinyl Ceiling
ATP Fenders
Bright Polished Radius Aluminum Nose
24" ATP Stone Guard
Led Exterior Lighting
(2) 12V Rectangle Led Interior Dome Lights W/ Wall Switch
Front Ramp Loading Light
3/4" Engineered Wood Flooring
(2) Plastic Side Vents
2 5/16" Coupler
Self-Mating Rear & Front (Roadside) Ramp Doors W/ Spring Assist & Key Lockable Hasps
5' V-Nose
Stainless Steel Door Hardware
44" Deluxe Overhead Cabinet W/ Clothes Bar In V-Nose
7 Way Junction Box Mounted On Interior Wall
Polished Accent Stripe W/Legend Decal
2000LB Top-Wind Set-Back Jack W/Foot
Limited 10 Year Axle - Limited Lifetime Warranty - Limited 1 Year Floor - Limited 25 Year Roof Warranty
Black
3/4" Engineered Wood Flooring
Legend Built Side Door Step
(2) Plastic Forced Air Side Vents
Model #: 7X23TMTA35
Dimensions: 7' x 23'
GVWR: 7000LB lbs
Axles: TANDEM
Box Length: 18'
Brakes: ELECTRIC
Interior Height: 7'
Interior Length: 22' 9"
Interior Width: 78.5"
Oa Height: 8' 11"
Oa Length: 26'
Oa Width: 8' 6"
Payload: 4525LB
Rrdo Height: 6' 7"
Rrdo Width: 72"
V-Nose Length: 5'
Weight: 2475LB
Wheels: 4
110v Electrical Package
- 110V Bronze Package- (1) Exterior Power Inlet, (1) Interior Outlet, (1) 48" Led Interior Light W/ (1) Wall Switch (Inlet & Outlet Must Be Back To Back)
12v Lighting
- (2) 12V Rectangle Led Interior Dome Lights W/ Wall Switch
Axle Spreads
- Tandem Spread Axles
Color
- Black
Door Hardware & Accessories
- Ramp Door Flap Extension (Sport) (Rear Ramp)
- Ramp Door Flap Extension (Sport) (Front Ramp)
Frame
- Rear Spoiler w/Two 9" Loading Lights w/12V Switch
Interior Height
- 6" Additional Height(Per Foot of Floor)
Tie Downs
- 6 x 1000LB Rope D-Ring Installed In Floor (Ea)
