15,000 lb Tandem Dexter Axles (Dually) w/Slipper Suspension
Electric Brakes on Both Axles
235/80R16 Radial Tires ON Galvanized Rims
12" Engineered Full-Length Beam
3" C-Channel Crossmembers at 16" On Centre w/Angled Supports

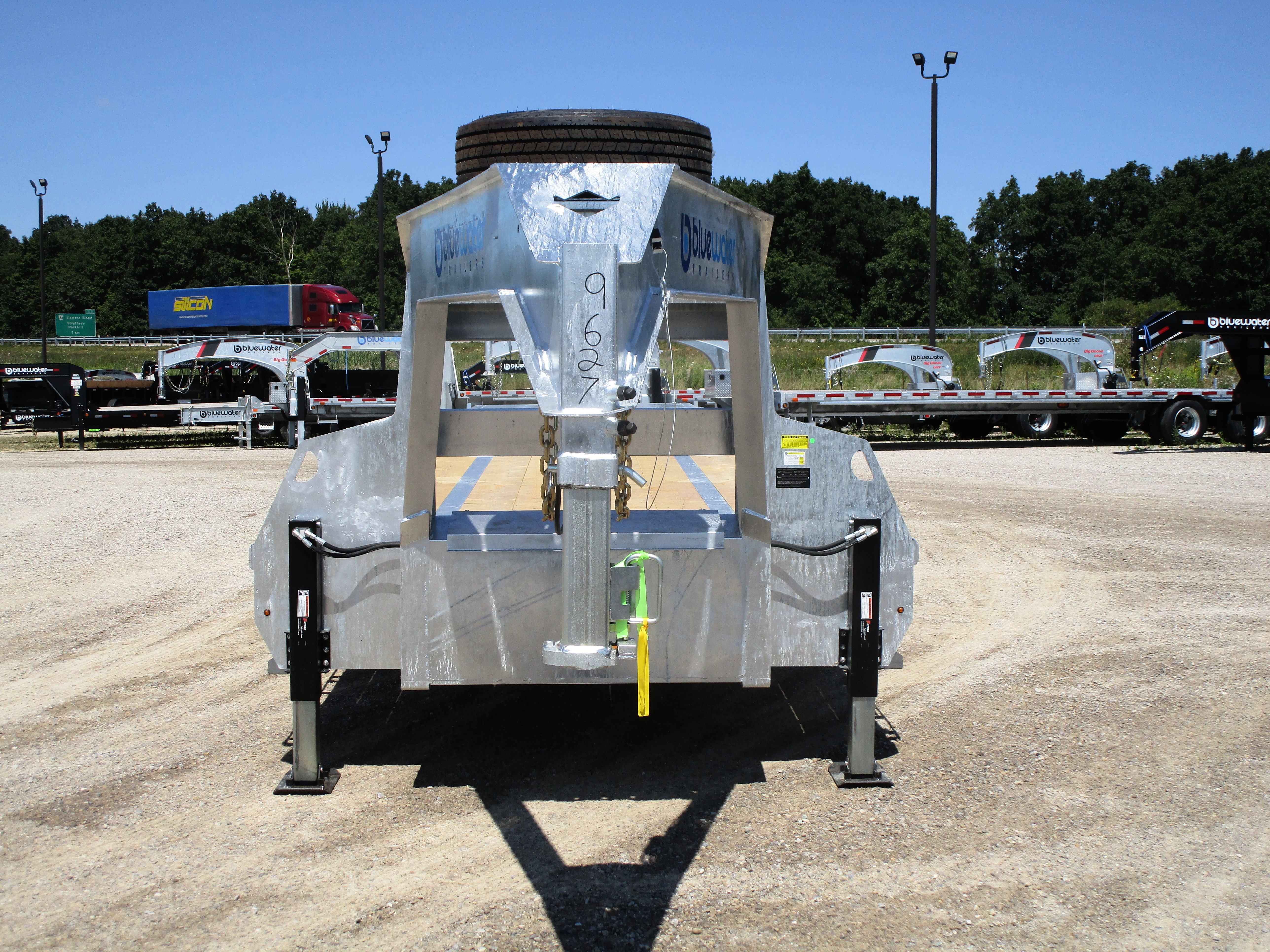

Mono-block Gooseneck
Heavy-Duty, Spring Assisted Mega Ramps w/Draw Latch Fastener
5' Beavertail with 14 Degree Slope
2 5/16" Gooseneck Coupler
3" Rubrail with 4" Stake Pockets Every 2'
2" Chain Spools Every 2' in Between Stake Pockets
Drop Down Leg at Rear
Spare Tire Mount
(2) 12,000 lb Jacks
Built-in Toolbox
(2) Fold-Down Steps at Front of Trailer
Chain Cabinet Nested in Gooseneck
LED Lighting
Heat Shrink Connectors on Wire Harness
Hot Dip Galvanized Finish
1-Year Limited Warranty

Model #: GHDGF8-TA102x35+5-15K
Dimensions: 102 x 40'
GVWR: 36,000 lbs
Axles: Tandem
Beavertail Length: 5'
Brakes: Electric
Deck Height: 34"
Deck Length: 35'
Oa Width: 102"
Payload: 24,845 lbs
Weight: 11,155 lbs
Wheels: 8

Axles
- Upgrade to 15K Hydraulic Axle

Jacks
- Upgrade to Hydraulic Jacks (12,000lb Tandem)

Spare Tires
- 15K Spare Tire
