Ord: 76680
Ser: 5WMBE2828V1019538
Status: New
White, Ramp, 6EH, Spoiler, Loaded
View as Catalogue

In Stock Inventory

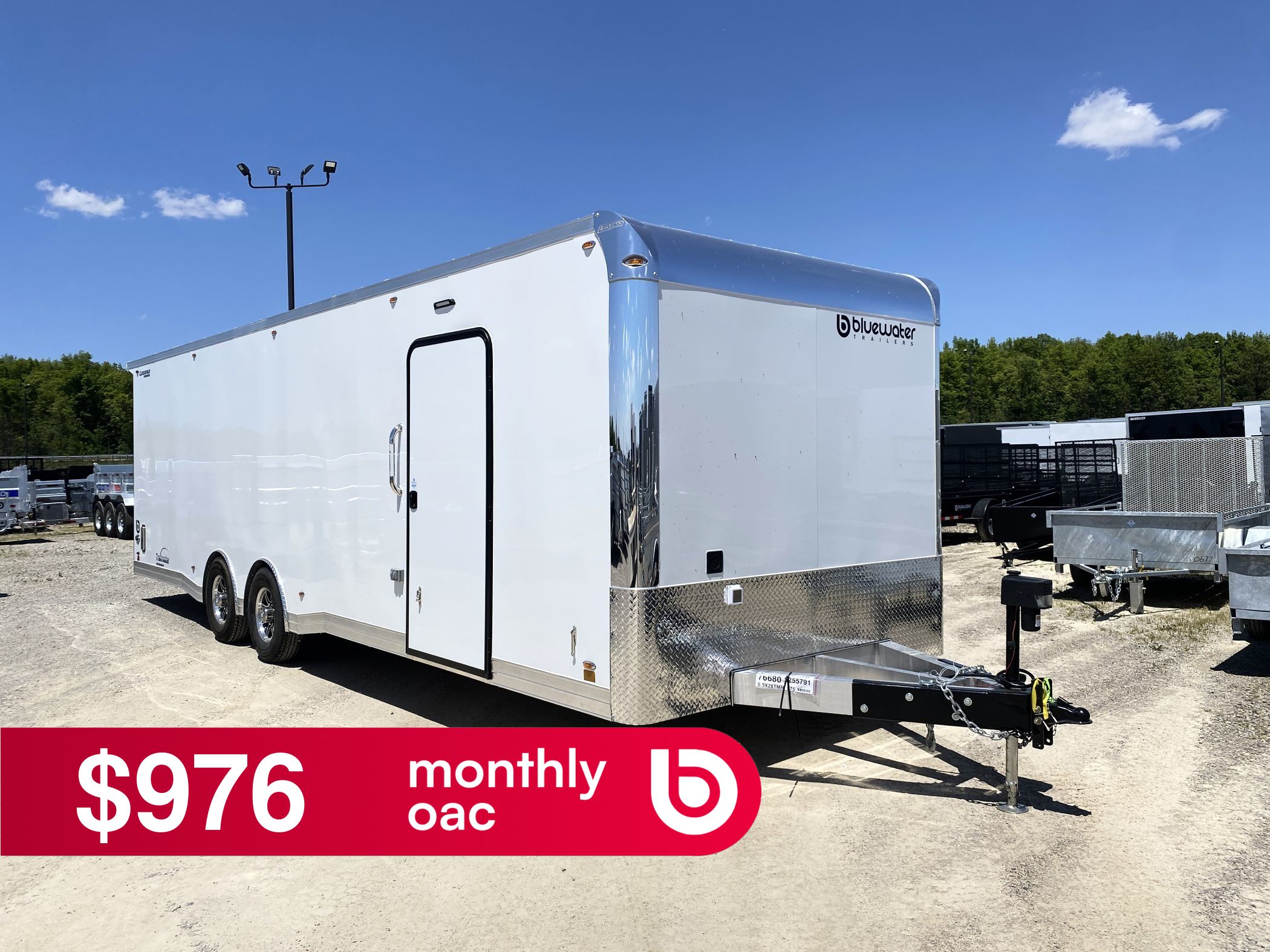

2027 Aluminum 8.5 Trailmaster Race Trailer Series

49185
Apply here!

Aluminum Enclosed 8.5 Wide Trailers
Aluminum Frame Commercial Trailers

8.5' x 28'
GVWR: 9990LB


Loading


Standard Features

Aluminum 2" X 6" Tube Frame
Aluminum 1"X 2" Radius Tube Roof Bows 16" On Centre
2"X 3" Aluminum Tube Cross Members 16" On Centre
Aluminum 1" X 1.5" Tube Wall Posts 16" On Centre
Steel Reinforced Triple Tube A-Frame Tongue (48")
.030 Screwless Aluminum Exterior Skin
24" ATP Stone Guard
ATP Wheel Boxes & Flares
ST225/75R15 Tires On Aluminum Rims
Self Mating Rear Ramp Door w/Spring Assist,Stainless Steel Door Hardware w/Key Lockable Hasps & Standard Flap
36" X 74" Curbside RV Side Door w/Flush Lock & Aluminum Holdback With Black Frame
3500Lb Dexter Torsion Spread Axles w/E-Z Lube System (Standard On 20ft-22ftt)
5200Lb Dexter Torsion Spread Axles w/E-Z Lube System(Standard On 24Ft And +)
3/8" Engineered Wood Walls
ATP Interior Trim
2 5/16" A-Frame Coupler
48" No Show Beavertail
Recessed Side Door Stepwell
12V Junction Box
Seamless One Piece Aluminum Roof
(2) Plastic Side Vents
(4) 5000LB D-Rings (Installed)
3/4" Engineered Wood Flooring
Lighted Side Entry Door Grab Handle
Bright Polished Cast Corners
Led Exterior Lighting
(2) 12V Rectangle Led Interior Dome Lights w/Wall Switch
2000LB Top-Wind A-Frame Jack w/Foot
Limited 10 Year Axle - Limited Lifetime Structural - Limited 1 Year Floor - Limited 25 Year Roof Warranty

Option Photos

Add Winch Plate Welded in Floor
Add Winch Plate Welded in Floor
Add Self Mating Deluxe Flip-Up Escape Door w/ Removable Fender 8.5 Wide Aluminum Enclosed Trailers (must select spread axles)
Add Self Mating Deluxe Flip-Up Escape Door w/ Removable Fender 8.5 Wide Aluminum Enclosed Trailers (must select spread axles)
White
White
Add Drop Skirting
Add Drop Skirting
3/4" Engineered Wood Flooring
3/4" Engineered Wood Flooring
2000Lb Top-Wind A-Frame Jack W/Foot
2000Lb Top-Wind A-Frame Jack W/Foot

Model Description

Model #: TMR8.5X28TA52
Dimensions: 8.5' x 28'
GVWR: 9990LB lbs
Axles: TANDEM
Brakes: ELECTRIC
Interior Height: 7'
Interior Length: 28'
Interior Width: 97"
Oa Height: 9'
Oa Length: 386.5"
Oa Width: 102"
Payload: 6060LB
Rrdo Height: 6' 7"
Rrdo Width: 89"
Weight: 3930LB
Wheels: 4

110v Electrical Package
- 110V-30 Amp Gold Package w/ 25' Extension Cord and Twist Lock Inlet (Marine Type) 30 Amp Breaker Box, Frame/Wire for A/C, (4) 48" LED Interior Lights w/ Wall Switch, (4) Interior Outlets, (1) Exterior Outlet

12v Electrical
- Add 12V Battery & Box

12v Lighting
- 4 x Additional LED Amber Clearance (Pair)
- Additional LED Tail w/ Chrome Ring DVN, FT, LS, TM, E, TS, Open (Pair)
- LED 6" Oval Backup Lights (Pair)
- 4 x Add 8" LED Dome Light w/ Wall Switch
- Rear Ramp LED Load Light w/ Wall Switch

Axles
- 5200Lb Dexter Torsion Spread Axles 8-Bolt ILO 5200Lb Torsion Spread Axle (6-Bolt); ST235/80R16 ILO ST225/75R15 (Only on Units that come standard with 5200lb Axles)

Cabinet Packages
- (1) 96"W x 39"H x 23"D Straight Lower (4 Door) & (1) 96"W x 18"H x 15"D Straight Upper (4 Door) Legend Classic Series

Ceilings
- Aluminum Ceiling - Screwed - Silver Frost

Color
- White

Couplers
- 14K Adjustable Coupler ILO 2-5/16" Coupler

Door Hardware & Accessories
- Deluxe Overhead Spring Cover:Only Available On Self Mating Door Extrusions Models
- Add Super Stratum Ramp Door Flap Extension (Standard)

Doors
- Reinforced Rear Ramp Door (Aluminum) (2 Extra Uprights, 1 Extra Hinge)

Exterior Skin
- Add Drop Skirting
- Upgrade to 6" Bottom Trim
- Stainless Steel Exterior Screws (N/A with Blackout Package)

Floor
- Super Stratum Flooring ILO 3/4" Engineered Wood Flooring
- Super Stratum Flooring ILO 3/4" Engineered Wood Flooring On Ramp Door

Frame
- 6" Extended Tube Aluminum Tongue (6" Tube Aluminum A-Frame)
- Rear Spoiler w/ (2) 9" LED Loading Lights w/ 12V Switch (N/A on Barn Doors)

Interior Height
- 6" Additional Height (Per Foot of Floor)

Interior Walls
- 3/8" Engineered Wood w/Silver Frost Aluminum Walls (Glued)
- 36" Tall Black Carpet Over Walls

Jacks
- Electric Jack (No Battery or Box) ILO Std 2,000#
- 20" Deluxe Rear Stabilizer Jacks (Pair)

Other Frame
- Add Winch Plate Welded in Floor

Side Doors
- Add Self Mating Deluxe Flip-Up Escape Door w/ Removable Fender 8.5 Wide Aluminum Enclosed Trailers (must select spread axles)

Spare Tires
- ST235/80R16 LRE Black Alum (8 Hole)

Tires and Wheels
- ST235/80R16 8-bolt Tires On Gunmetal Aluminum Rims (Must select 5200lb or 6000lb axles)

Vents
- Salem 2-Way Aluminum Side Vents ILO Plastic Side Vents

Wheel Accessories
- Add Aluminum Spare Mount In Floor Compartment

Custom Options


Create Quote
