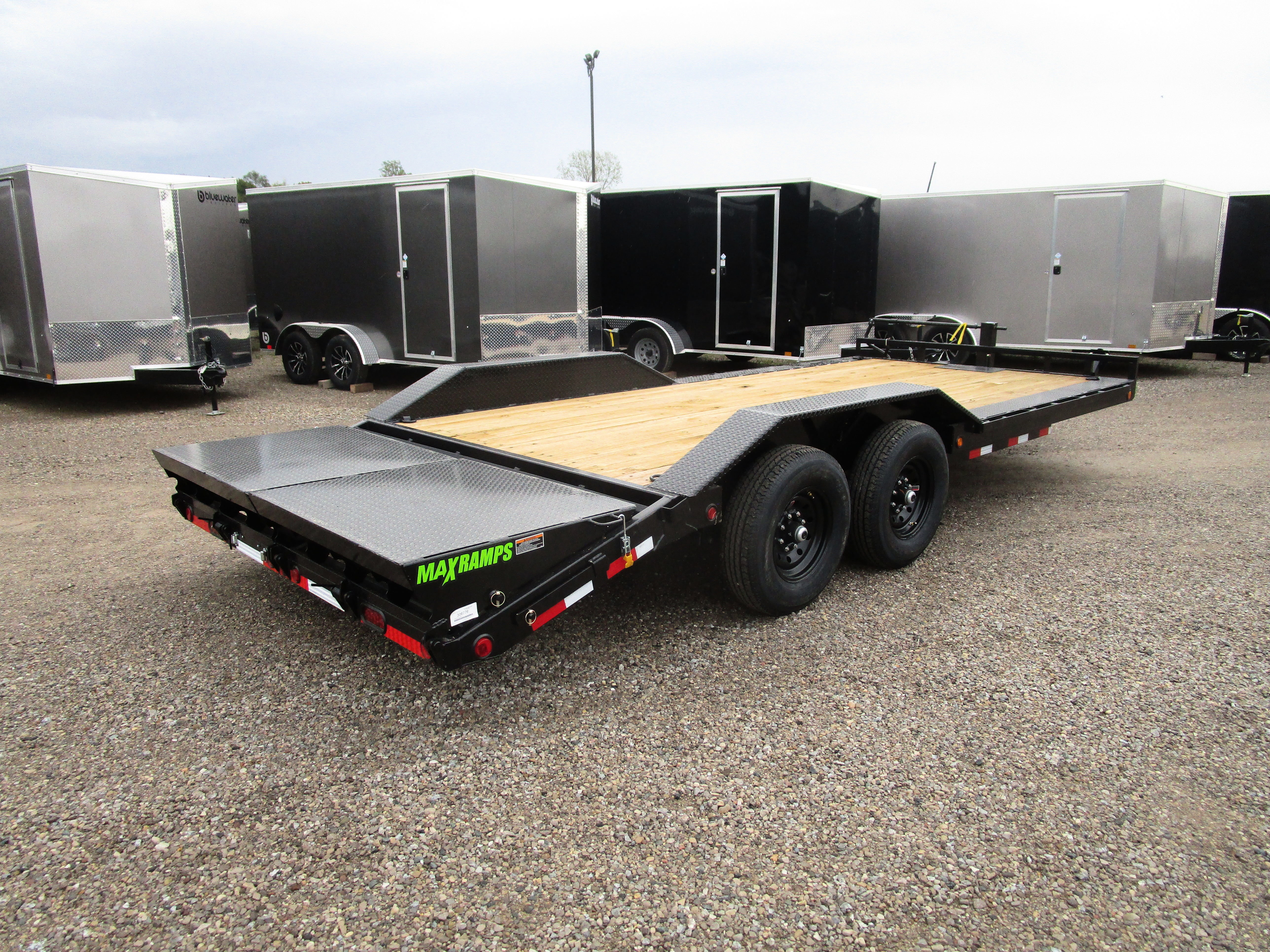

2024 Carhauler w/6" Channel Frame Trailer 14,000 Lb

Apply here!

Car/Equipment Trailers
Car/Equipment Trailers

102 x 20'
GVWR: 14000#

This Trailer has been sold! Here are some similar inventory items!


Standard Features

7,000 Lb (ea axle)
14,000 GVWR
2-5/16" Adjustable Coupler
18,800 Lb 5/16 x 28 G#70 Safety Chains
1-10K Drop Leg Spring Return Jack
2-10K Drop Leg Spring Return Jack (Standard on 24ft and +)
2-7,000 Lb Cambered Dexter Spring 2 Elec. Brake Forward Adjusting
ST235/80 R16 LRE Tires
16" 8-Hole Wheels
Multi-Leaf Spring Suspension
6" Channel (8.2 lbs/ft) Tongue
8" Channel Tongue (Standard on 24ft and + and triple axle)
6" Channel (8.2 lbs/ft) Frame
8" Channel Frame (Standard on 24ft and + axle)
2" X 2" 3/16" Angle Front Rail Uprights
Straight Deck + 5ft Slide-In Ramps
3" Channel 16" OC (3.5 lbs/ft) Crossmembers
Treated Pine Wood Floor
Removable, Steel Diamond Plate Fenders
Heavy Duty 9" Fenders (weld-on) (Standard on 102" Wide Models)
Rear Slide-IN Ramps 5' x 13" (Standard on 18'+)
Side Slide-IN Ramps 5' x 13" (carhauler) (Standard on 16ft and down)
2" X 2" 1/8" Square Tube Front Rail
LED D.O.T. Stop, Tail, Turn and Clearance Lighting
16 Ga. 5-Way Double Insulated Harness w/Cold Weather Cold 7-way plug
(4) 3" Weld-On D-Rings
Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Top Coat
Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion

Option Photos

Model Description

Model #: CH0220072
Dimensions: 102 x 20'
GVWR: 14000# lbs
Payload: 10541#
Weight: 3459#
Wheels: 4

- Black

- 9" Steel Diamond Plate DRIVE-OVER Fenders

- MAX Ramps w/Dove (Not Available with Drop Axles)

Rub Rails
- Rub Rail

Spare Tire Mount
- Spare Tire Mount

Tire Upgrades
- ST235/80 R16 LRE 10 Ply. (BLACK WHEELS)

- Winch Plate (8" Channel)
