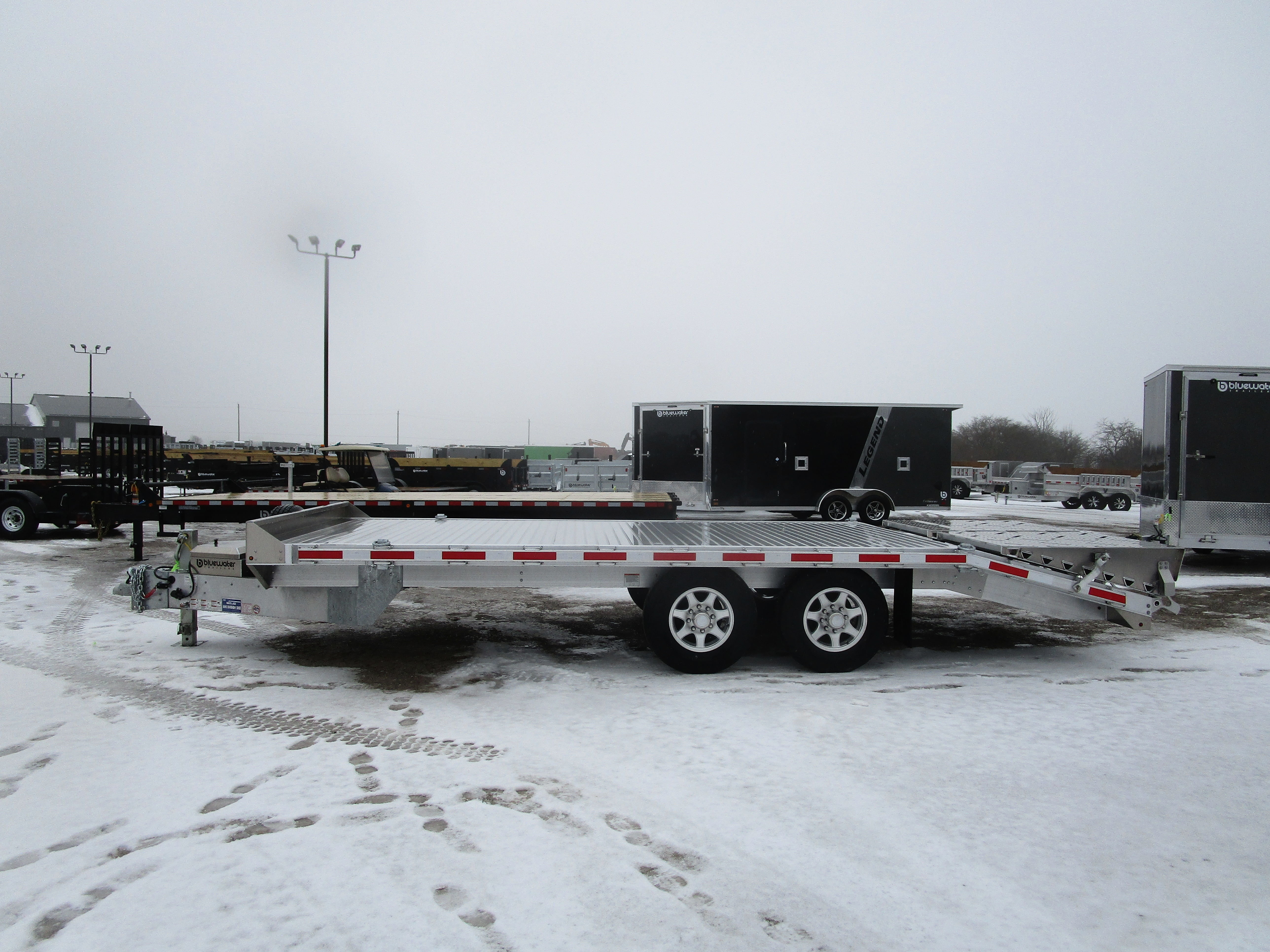

2025 Aluminum Deck-Over Bumper-Pull Trailer 14K GVW

22750.00
Apply here!

Flat Bed Trailers
Aluminum Deck Over Trailers

102" x 20'
GVWR: 14000#


Loading

*Not actual photos of inventory*

Standard Features

(2) 7000lb Torsions, 102" wide
Electric Brakes on Both Axles
235/80R16 load Range E
16" Steel Wheels, 8 Bolt
14,000lb GVWR
2 5/16" Adjustable Ball Coupler, 8" channel 15,000 # rating
12,000# side-wind jack with drop leg
Rubber Torsion Suspension
34 1/2" Deck Height
10 3/8" Channel Frame
Extruded aluminum deck with 5 1/2" side rails
51" Beavertail at Rear
Stake Pockets & Rub Rails
(2) Hinged Rear Ramps, 60" L x 16" W, tube frame with angle cross-members, store in upright position,adjustable side to side to match track width
(1 Set) LED Oval stop/tail/turn lights
1" Round LED Clearnace and Marker Lights (ALL LED)
7 pin RV Plug
Break-Away Kit
(4) Removable Stake Pocket Mount D-Rings
2 Year Warranty

Option Photos

2 5/16" Adjustable Ball Coupler, 10 3/8" Channel 15,000# rating
2 5/16" Adjustable Ball Coupler, 10 3/8" Channel 15,000# rating
16" 235/80R16 LRE Tires with Steel Wheels
16" 235/80R16 LRE Tires with Steel Wheels

Model Description

Model #: DO14K20
Dimensions: 102" x 20'
GVWR: 14000# lbs
Axles: TANDEM
Brakes: ELECTRIC
Deck Height: 34.5"
Deck Width: 97.75"
Flat Deck Length: 15' 9"
Full Measured Length: 20'
Oa Length: 24' 10"
Oa Width: 102"
Payload: 11459#
Weight: 2724#
Wheels: 4

Ramps
- Upgrade Ramps in Tradesman Package to 50/50 Fold Flat Ramps (w/package only)

Trailer Packages
- Tradesman Package (ST235/80R16 on Aluminum Rims, Spare Tire on Steel Wheel (Includes Mount), (2) 1/3 Fold-Flat Ramps, A-Frame Toolbox, (note sealed box, allows for spare tire mount)

Custom Options
