Ord: 69182
Ser: 5WMBE2022T1014831
Status: New
White, 6Eh, 5200s, Escape Door, Spare Tire & Mount, , 8000lb Winch
View as Catalogue

In Stock Inventory

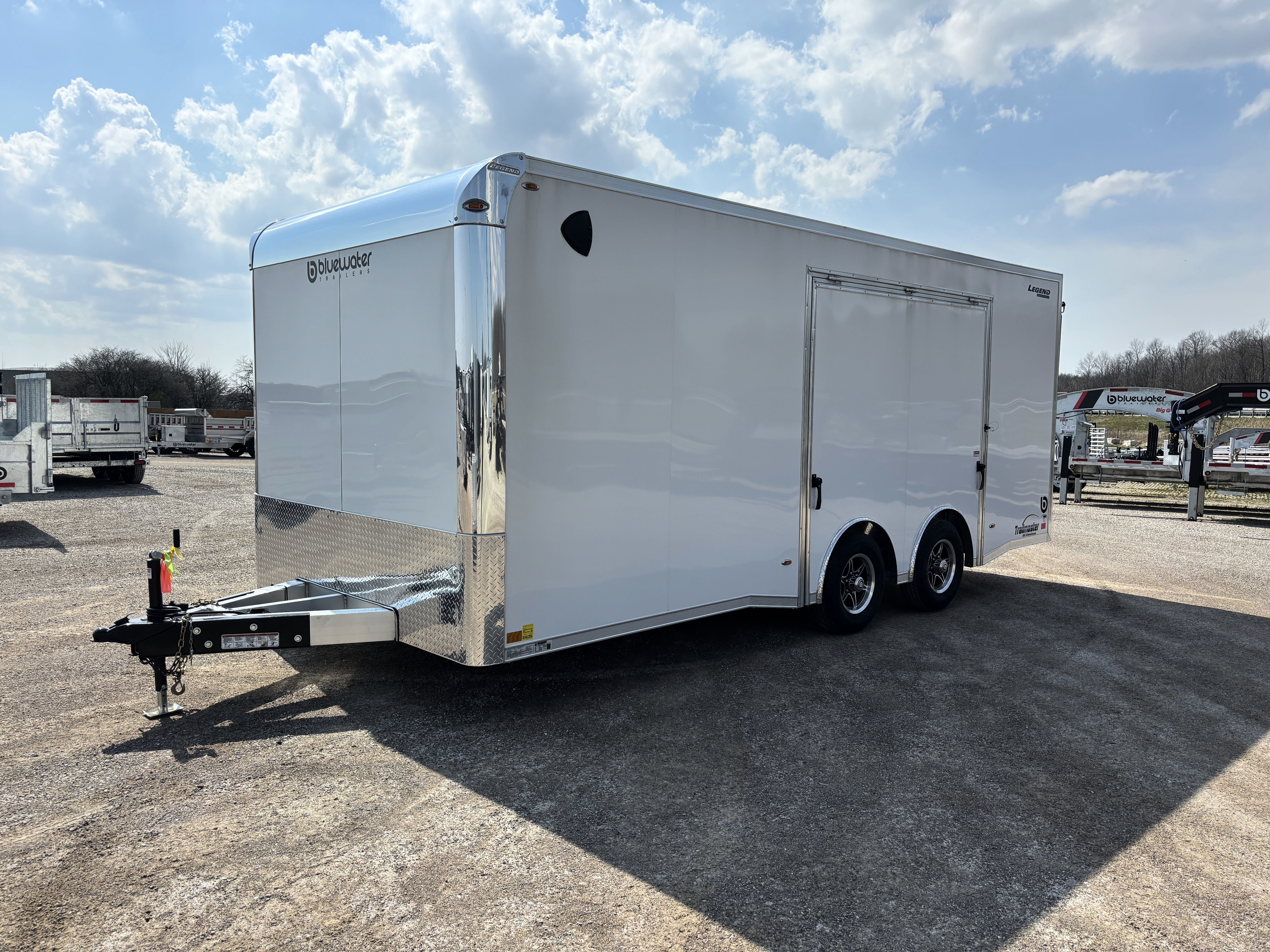

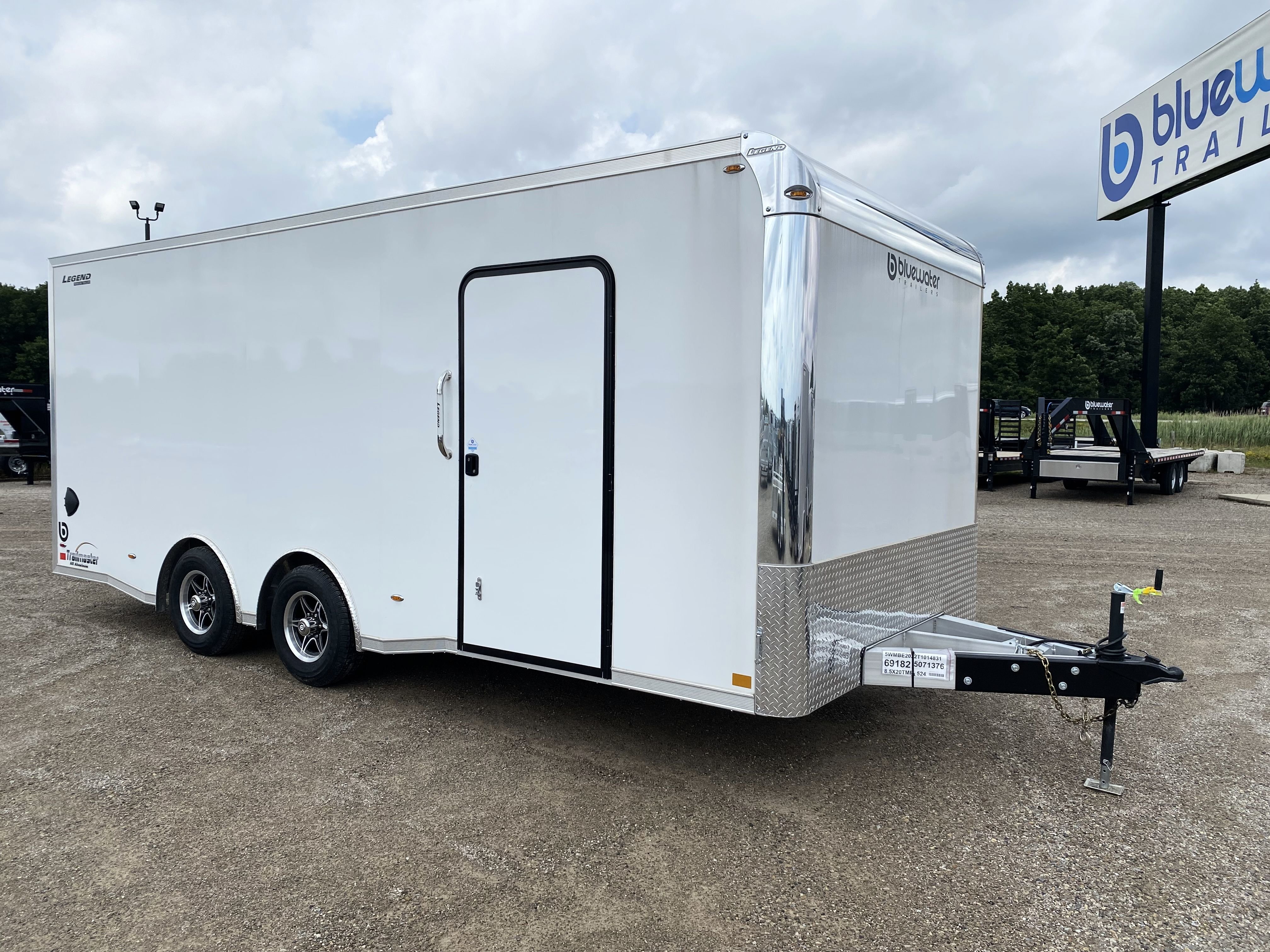

2026 Aluminum 8.5 Trailmaster Race Trailer Series

29606
Apply here!

Aluminum Enclosed 8.5 Wide Trailers
Aluminum Frame Commercial Trailers

8.5' x 20'
GVWR: 9990LB


Loading


Standard Features

Aluminum 2" X 6" Tube Frame
Aluminum 1"X 2" Radius Tube Roof Bows 16" On Centre
2"X 3" Aluminum Tube Cross Members 16" On Centre
Aluminum 1" X 1.5" Tube Wall Posts 16" On Centre
Steel Reinforced Triple Tube A-Frame Tongue (48")
.030 Screwless Aluminum Exterior Skin
24" ATP Stone Guard
ATP Wheel Boxes & Flares
ST225/75R15 Tires On Aluminum Rims
Self Mating Rear Ramp Door w/Spring Assist,Stainless Steel Door Hardware w/Key Lockable Hasps & Standard Flap
36" X 74" Curbside RV Side Door w/Flush Lock & Aluminum Holdback With Black Frame
3500Lb Dexter Torsion Spread Axles w/E-Z Lube System (Standard On 20ft-22ftt)
5200Lb Dexter Torsion Spread Axles w/E-Z Lube System(Standard On 24Ft And +)
3/8" Engineered Wood Walls
ATP Interior Trim
2 5/16" A-Frame Coupler
48" No Show Beavertail
Recessed Side Door Stepwell
12V Junction Box
Seamless One Piece Aluminum Roof
(2) Plastic Side Vents
(4) 5000LB D-Rings (Installed)
3/4" Engineered Wood Flooring
Lighted Side Entry Door Grab Handle
Bright Polished Cast Corners
Led Exterior Lighting
(2) 12V Rectangle Led Interior Dome Lights w/Wall Switch
2000LB Top-Wind A-Frame Jack w/Foot
Limited 10 Year Axle - Limited Lifetime Structural - Limited 1 Year Floor - Limited 25 Year Roof Warranty

Option Photos

Add Self Mating Deluxe Flip-Up Escape Door w/ Removable Fender 8.5 Wide Aluminum Enclosed Trailers (must select spread axles)
Add Self Mating Deluxe Flip-Up Escape Door w/ Removable Fender 8.5 Wide Aluminum Enclosed Trailers (must select spread axles)
White
White
Add Drop Skirting
Add Drop Skirting
3/4" Engineered Wood Flooring
3/4" Engineered Wood Flooring
2000Lb Top-Wind A-Frame Jack W/Foot
2000Lb Top-Wind A-Frame Jack W/Foot

Model Description

Model #: TMR8.5X20TA35
Dimensions: 8.5' x 20'
GVWR: 9990LB lbs
Axles: TANDEM
Brakes: ELECTRIC
Interior Height: 7'
Interior Length: 20'
Interior Width: 97"
Oa Height: 9'
Oa Length: 290.5"
Oa Width: 102"
Payload: 7145LB
Rrdo Height: 6' 7"
Rrdo Width: 89"
Weight: 2845LB
Wheels: 4

Axles
- Tandem Axle 5200Lb Torsion Spread Axle ILO (2) 3500Lb Torsion Spread Axles: ST225/75R15 (6 Hole ILO 5 Hole) (20'-22' only)

Color
- White

Door Hardware & Accessories
- Ramp Door Flap Extension (Sport) ILO (Standard)

Exterior Skin
- Add Drop Skirting

Frame
- Add Winch Plate: Welded In Floor

Interior Height
- 6" Additional Height (Per Foot of Floor)

Side Doors
- Add Self Mating Deluxe Flip-Up Escape Door w/ Removable Fender 8.5 Wide Aluminum Enclosed Trailers (must select spread axles)

Spare Tires
- ST225/75R15 LRD Spare Tire On Steel Silver Mod Rim (6 Hole)

Wheel Accessories
- Add Aluminum Spare Tire Mount (Wall Mounted W/Backer)

Custom Options


Create Quote
