Ramps, D-Rings, Stab Jacks
View as Catalogue
2-5,200 Lb Axles w/ Electric Brakes
Leaf Spring Suspension
EZ Lub Hubs
15" Radial Tires
Galvanized Rims
All Aluminum Construction
24" Aluminum Solid Sides
8" Raised Front (32" Total)

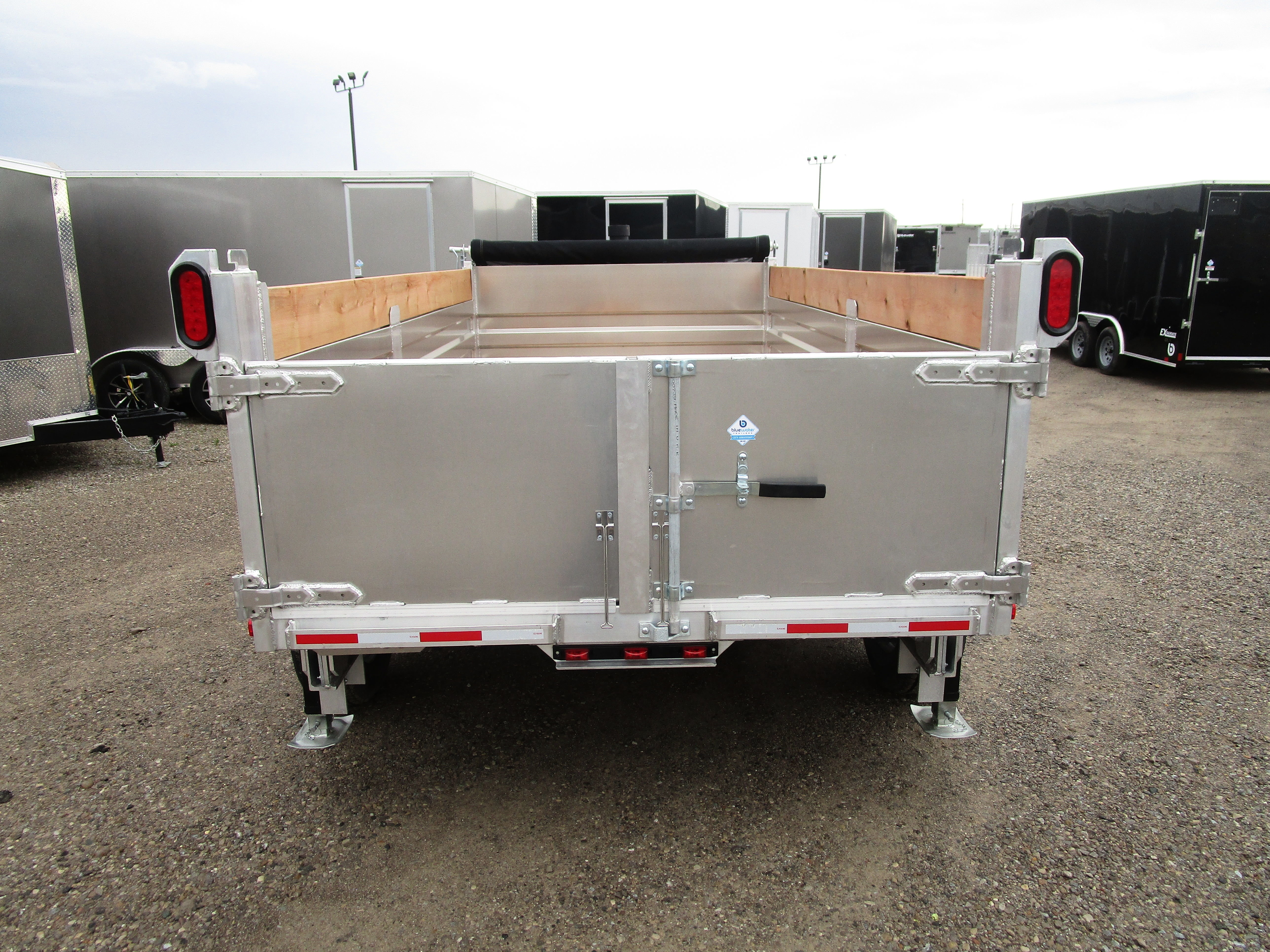

Rear Barn Doors
3 x 8 x 9/32 Channel for the first frame
2 x 4 x 3/16 Tube for the second frame
2 x 6 x 3/16 Tube for the side frame
18" O.C 1.5 x 3" Tube Crossmembers
Timber Bracket (Timber Included)
7-Way Connector
7,000 Lb Drop Leg Jack
6 Gallon Hydraulic Unit in Aluminum Toolbox
120" 12 Ton Telescopic Cylinder
Tarp and Roller
2x8 Treated Wood Planks
2 5/16" Galvanized Coupler
5 Year Warranty on the Frame,Welding, Electrical
5,000 Lb D-Ring Installed (ea)
24" Aluminum Solid Sides
2x8 Treated Wood Planks
Factory Installed 8,000 Lb Fender Mounted Ramps (8' long)
15" Radial Tires with Galvanized Rims
Model #: 6X12TA
Dimensions: 6' x 12'
GVWR: 9990# lbs
Axles: TANDEM
Brakes: ELECTRIC
Payload: 8480#
Weight: 1510#
D-Rings
- 4 x 5,000 Lb D-Ring Installed (ea)
Ramps
- Factory Installed 8,000 Lb Fender Mounted Ramps (8' long)
Stabilizer Jacks
- Factory Installed Stabilizer Jacks (2 x 7000lbs Drop Leg)
