Ord: 259469
Ser: 4ZEDT1224N1259469
Status: New
SALE!!!
View as Catalogue

In Stock Inventory

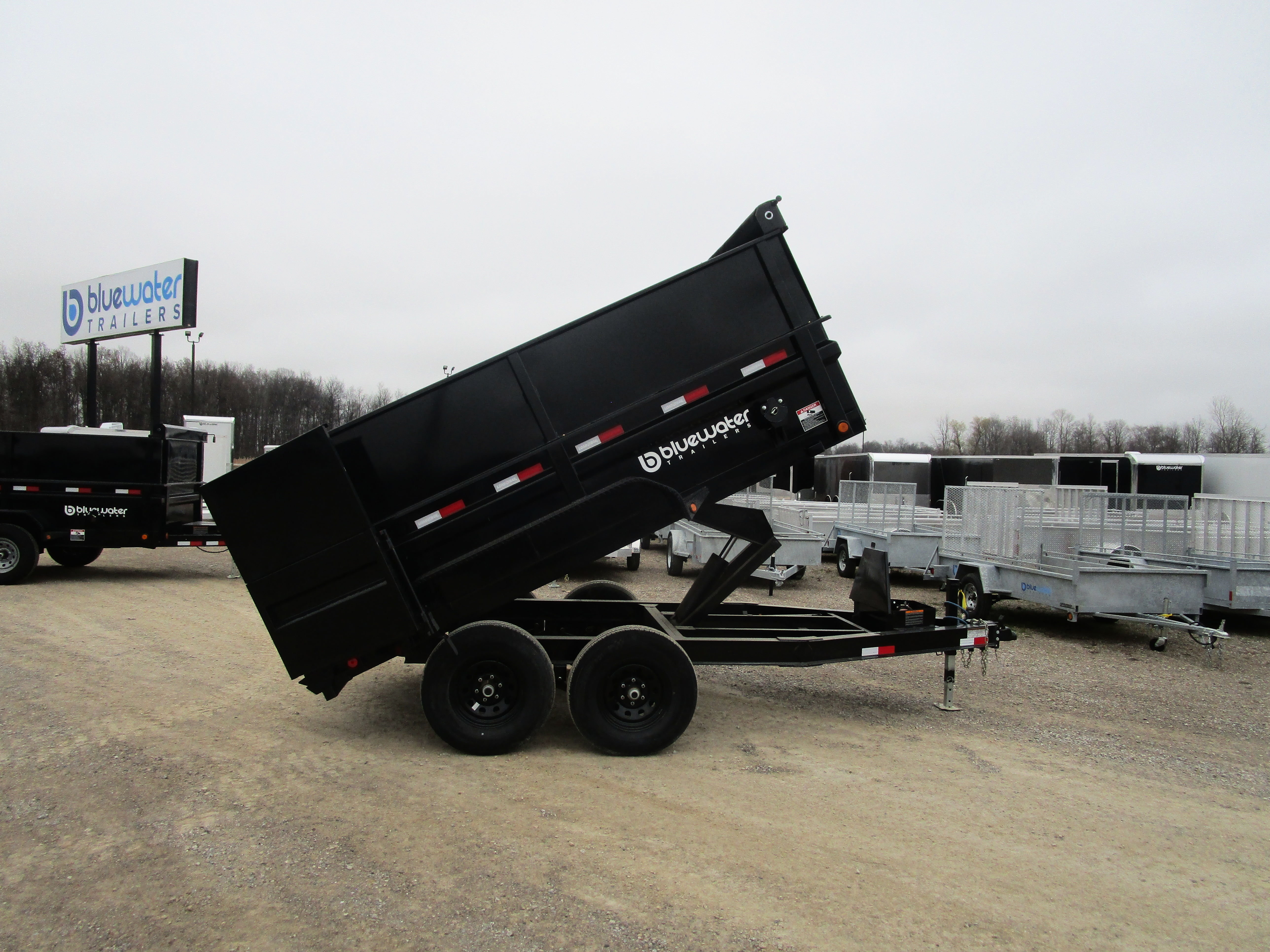

2022 Tandem Axle Dump w/6" I-Beam Frame 9,990 Lb

14138
Apply here!

Dump Trailers
Heavy Duty Trailers

72 x 12'
GVWR: 9990#


Loading


INVENTORY BLOWOUT SALE! Was $15000 Now $14138!!!


Standard Features

5,200 Lb (ea axle)
2-5/16" Adjustable Coupler
12,600 Lb 1/4 x 28 G#70 Safety Chains
Dropleg 7,000 Lb Jack
2-5,200 Lb Cambered Dexter Spring 2 Elec. Brake Forward Adjusting
235/80 R16 LRE Tires
16" 6-Hole Wheels
Multi-Leaf Spring Suspension
6" I-Beam Tongue (Less Then 80" Wide Have 5" Channel (6.7 lbs/ft)
6" I-Beam Frame (8.2 lbs/ft)(Less Then 80" Wide Have 5" Channel (6.7 lbs/ft)
2" x 6" Tubing (Less Then 80" Wide Have 2" x 4" Tubing Bed Frame
10 Ga. 18" High Sides on (60" Wide Only)
10 Ga. 24" High Sides on (72", 80" and 83" Wide Only)
5" Channel (6.7 lbs/ft) Crossmembers
3" Channel (3.5 lbs/ft) Bed Crossmembers
Front Tongue Mount Toolbox
10 Ga. Smooth Plate Flooring
Rear Slide-In Ramps (Standard On 12ft +)
Weld On Diamond Plate Fenders
2-Way Spreader Gate
LED D.O.T. Stop, Tail, Turn and Clearance Lighting
16 Ga. 5-Way Double Insulated Harness w/Cold Weather Cold 7-way plug
5" x 15.75 x 2" with Scissor Hoist
Double Acting Power Unit
Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Top Coat
Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
E-Z Lock Mesh Tarp System with Cover
Black

Option Photos

Model Description

Model #: DT7212052
Dimensions: 72 x 12'
GVWR: 9990# lbs
Axles: TANDEM
Brakes: ELECTRIC
Payload: 6910#
Weight: 3080#
Wheels: 4

Axles
- 2 - 5,200 Lb Dexter Axles (2 Elec Brakes) Forward Adjusting

Colors
- Black

Dump Sides
- 24" Dump Sides w/24" 2-Way Gate (Standard on 72", 80" and 83" Wide)

Extensions
- Solid Metal Extensions 24"

Lights
- Lighting LED (w/Cold Weather Harness)

Ramps
- Rear Slide-In Ramps (Standard On 12ft +)

Scissors
- Scissor Hoist w/Standard Pump

Side Steps
- 1-MAX-STEP (30")

Spare Tire Mount
- Spare Tire Mount

Tire Upgrades
- ST235/80 R16 LRE 10 Ply. (BLACK WHEELS)

Custom Options
